| ชื่อแบรนด์: | GoreLink |
| เลขรุ่น: | GL-GYTA53-896 |
| ขั้นต่ำ: | 1000m |
| ระยะเวลาการจัดส่ง: | As per the order quantity |
| เงื่อนไขการจ่ายเงิน: | T/T,Paypal,Western Union |

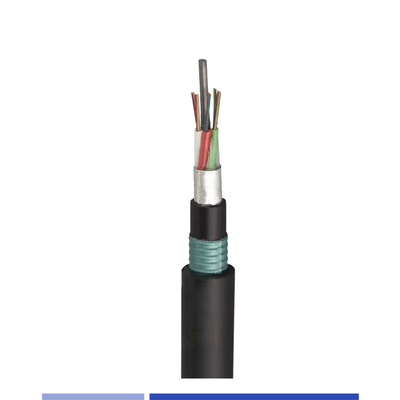

Gorelink Direct-buried fiber optic cables can be directly buried in the ground, which eliminates the need for additional protective conduits or ducts, saving installation time and costs. They are designed to offer increased durability and resistance to moisture, temperature fluctuations, and physical damage.
Application
FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks
General Specification
|
Fiber Mode |
Singlemode G652D |
|
Fiber Count |
96 Core |
|

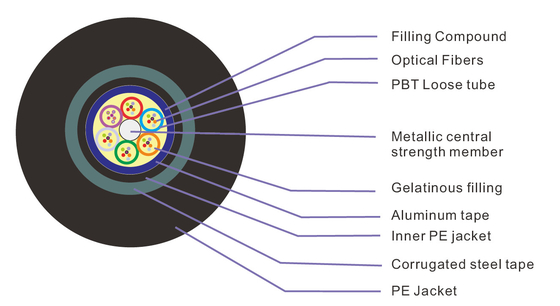

Cable structure |
Stranded Loose tube |
|
Double Armor |
Aluminum + Corrugated Steel Tape Armor |
|
Inner Sheath |
PE |
|
Strength Member |
Metallic |
|
Cable Diameter |
12.0-18.5mm |
|
Outer Jacket |
PE |
|
Cable Color |
Black |
|
Cable length |
As per the order request |
|
OPTICAL PERFORMANCE |
|
|
Attenuation(dB/km) |
≤0.36 dB @1310nm |
|
Core diameter(um) |
9±2.5 |
|
Cladding diameter(um) |
125±1.0 |
|
Wavelength |
1310nm / 1550nm |
Download Datasheet
| Outdoor Direct Burial Armored Fiber Optic Cable- GYTA53-Singlemode |
Ordering Information
|
PART NO. |
DESCRIPTION |
|
GL-GYTA53-808 |
Outdoor Fiber Optic Cable, 8 Fiber,Singlemode G652D,Direct Buried,PE,Black,GYTA53 |
|
GL-GYTA53-812 |
Outdoor Fiber Optic Cable,12 Fiber,Singlemode G652D,Direct Buried,PE,Black,GYTA53 |
|
GL-GYTA53-824 |
Outdoor Fiber Optic Cable, 24 Fiber,Singlemode G652D,Direct Buried,PE,Black,GYTA53 |
|
GL-GYTA53-848 |
Outdoor Fiber Optic Cable, 48 Fiber,Singlemode G652D,Direct Buried, PE,Black,GYTA53 |
|
GL-GYTA53-896 |
Outdoor Fiber Optic Cable, 96 Fiber,Singlemode G652D, Direct Buried ,PE,Black,GYTA53 |
|
GL-GYTA53-8144 |
Outdoor Fiber Optic Cable, 144 Fiber,Singlemode G652D,Direct Buried,PE,Black,GYTA53 |
|
* Customized |
|
If you need any further assistance, please feel free to contact us at sales@gorelink.com .
|
|
| ชื่อแบรนด์: | GoreLink |
| เลขรุ่น: | GL-GYTA53-896 |
| ขั้นต่ำ: | 1000m |

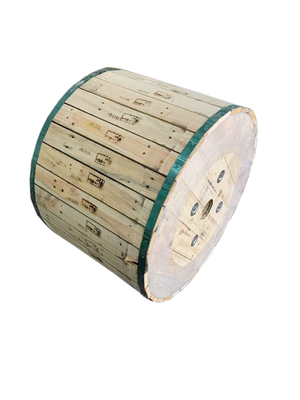

| รายละเอียดการบรรจุ: | กลองไม้ |
